 I conducted a six-month research on aerodynamic performance-driven design for skyscrapers, sponsored by RTKL’s Kagan Fellowship. What is shown here is my presentation at Computer Aided Architectural Design (CAAD) Futures 2013 conference in Shanghai. Strategies in modifying the shape of the skyscrapers with the goal of improving their aerodynamic performance have been suggested by various scientific researches. Six of these strategies are incorporated into parametric design tools that produce a matrix of 60 prototypes, which then undergo qualitative and quantitatively evaluation iterations to select the most optimized design, with considerations given to aerodynamic performance, structural robustness, program potential, and image attractiveness. Consulting from the world-renowned engineering firm RWDI and the use of Autodesk Simulation CFD are used to make the evaluation. Eventually the 60 prototypes are narrowed down to two design options, which in turn are further developed into hypothetical projects.   The most important result of the study is not the design, but a multi-staged aerodynamic performance-driven design process. In addition, two valuable insights have been obtained: first, to inspire a new approach in the design of skyscrapers, the Multi-Disciplinary Optimization methodology from the aerospace industry has been used. Second, parametric design that is able to generate interesting forms is backed by quantitative scientific analysis and reasoning. Instead of the Modernist “form follows function”, the philosophy of the new approach is “form follows performance”. This is the train of thought that I have found fascinating: aerodynamic performance, energy performance, and performances of other kinds, will inspire new design approaches. When physics is brought into architecture, the Nature's process is re-createdin a way . Look at what fantastic “architecture” the Nature is able to produce by being performance-driven (you can argue it is adaption-driven, but I would argue that natural selection should not be overemphasized in the context of the discussion.)
       
     

I conducted a six-month research on aerodynamic performance-driven design for skyscrapers, sponsored by RTKL’s Kagan Fellowship. What is shown here is my presentation at Computer Aided Architectural Design (CAAD) Futures 2013 conference in Shanghai. Strategies in modifying the shape of the skyscrapers with the goal of improving their aerodynamic performance have been suggested by various scientific researches. Six of these strategies are incorporated into parametric design tools that produce a matrix of 60 prototypes, which then undergo qualitative and quantitatively evaluation iterations to select the most optimized design, with considerations given to aerodynamic performance, structural robustness, program potential, and image attractiveness. Consulting from the world-renowned engineering firm RWDI and the use of Autodesk Simulation CFD are used to make the evaluation. Eventually the 60 prototypes are narrowed down to two design options, which in turn are further developed into hypothetical projects.


The most important result of the study is not the design, but a multi-staged aerodynamic performance-driven design process. In addition, two valuable insights have been obtained: first, to inspire a new approach in the design of skyscrapers, the Multi-Disciplinary Optimization methodology from the aerospace industry has been used. Second, parametric design that is able to generate interesting forms is backed by quantitative scientific analysis and reasoning. Instead of the Modernist “form follows function”, the philosophy of the new approach is “form follows performance”. This is the train of thought that I have found fascinating: aerodynamic performance, energy performance, and performances of other kinds, will inspire new design approaches. When physics is brought into architecture, the Nature's process is re-createdin a way . Look at what fantastic “architecture” the Nature is able to produce by being performance-driven (you can argue it is adaption-driven, but I would argue that natural selection should not be overemphasized in the context of the discussion.)

130704_CF Presentation01.jpg
       
     
130704_CF Presentation02.jpg
       
     
130704_CF Presentation03.jpg
       
     
130704_CF Presentation04.jpg
       
     
130704_CF Presentation05.jpg
       
     
130704_CF Presentation06.jpg
       
     
130704_CF Presentation07.jpg
       
     
130704_CF Presentation08.jpg
       
     
130704_CF Presentation09.jpg
       
     
130704_CF Presentation10.jpg
       
     
130704_CF Presentation11.jpg
       
     
130704_CF Presentation12.jpg
       
     
130704_CF Presentation13.jpg
       
     
130704_CF Presentation14.jpg
       
     
130704_CF Presentation15.jpg
       
     
130704_CF Presentation16.jpg
       
     
130704_CF Presentation17.jpg
       
     
130704_CF Presentation18.jpg
       
     
130704_CF Presentation19.jpg
       
     
130704_CF Presentation20.jpg
       
     
130704_CF Presentation21.jpg
       
     
130704_CF Presentation22.jpg
       
     
130704_CF Presentation23.jpg
       
     
130704_CF Presentation24.jpg
       
     
130704_CF Presentation25.jpg
       
     
130704_CF Presentation26.jpg
       
     
130704_CF Presentation27.jpg
       
     
130704_CF Presentation28.jpg
       
     
130704_CF Presentation29.jpg
       
     
130704_CF Presentation30.jpg
       
     
130704_CF Presentation31.jpg
       
     
130704_CF Presentation32.jpg
       
     
130704_CF Presentation33.jpg
       
     
130704_CF Presentation34.jpg
       
     
130704_CF Presentation35.jpg
       
     
130704_CF Presentation36.jpg
       
     
130704_CF Presentation37.jpg
       
     
130704_CF Presentation38.jpg
       
     
130704_CF Presentation39.jpg
       
     
130704_CF Presentation40.jpg
       
     
130704_CF Presentation41.jpg
       
     
130704_CF Presentation42.jpg
       
     
130704_CF Presentation43.jpg
       
     
130704_CF Presentation44.jpg
       
     
130704_CF Presentation45.jpg
       
     
130704_CF Presentation46.jpg
       
     
130704_CF Presentation47.jpg
       
     

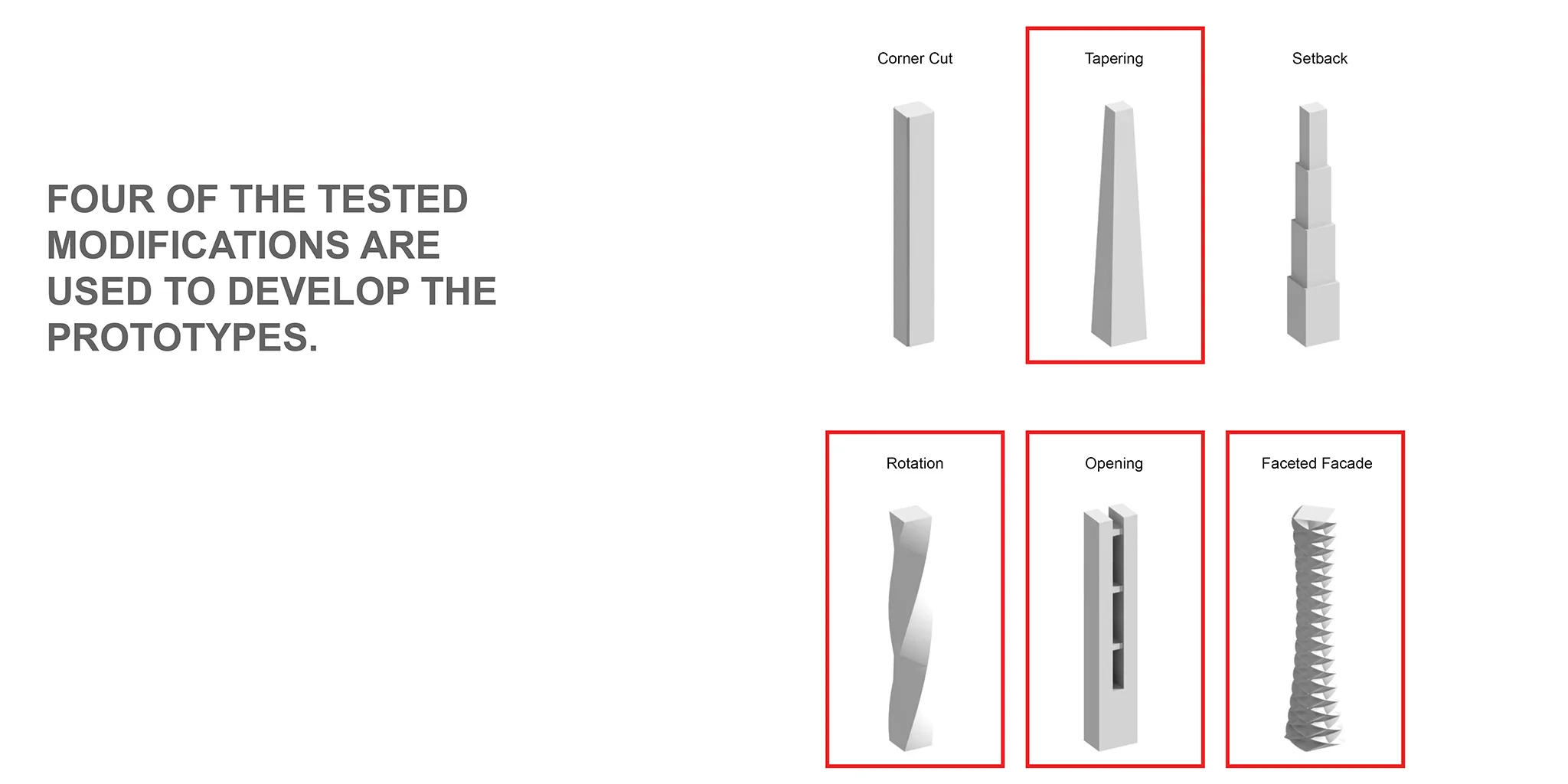

130704_CF Presentation48.jpg
       
     
130704_CF Presentation49.jpg
       
     
130704_CF Presentation50.jpg
       
     
130704_CF Presentation51.jpg
       
     
130704_CF Presentation52.jpg
       
     
130704_CF Presentation53.jpg
       
     
130704_CF Presentation54.jpg
       
     
130704_CF Presentation55.jpg
       
     

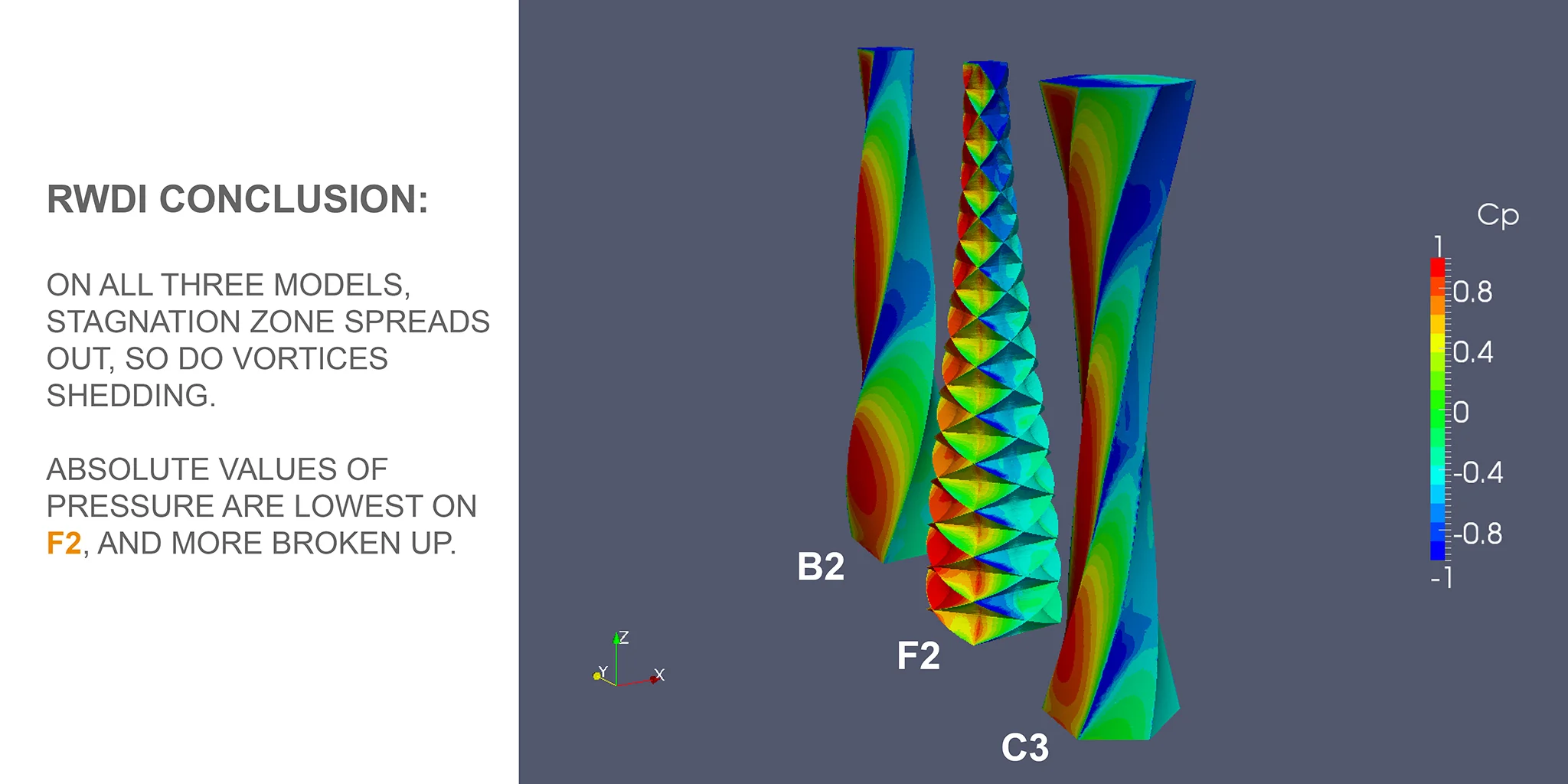

130704_CF Presentation56.jpg
       
     
130704_CF Presentation57.jpg
       
     
130704_CF Presentation58.jpg
       
     
130704_CF Presentation59.jpg
       
     

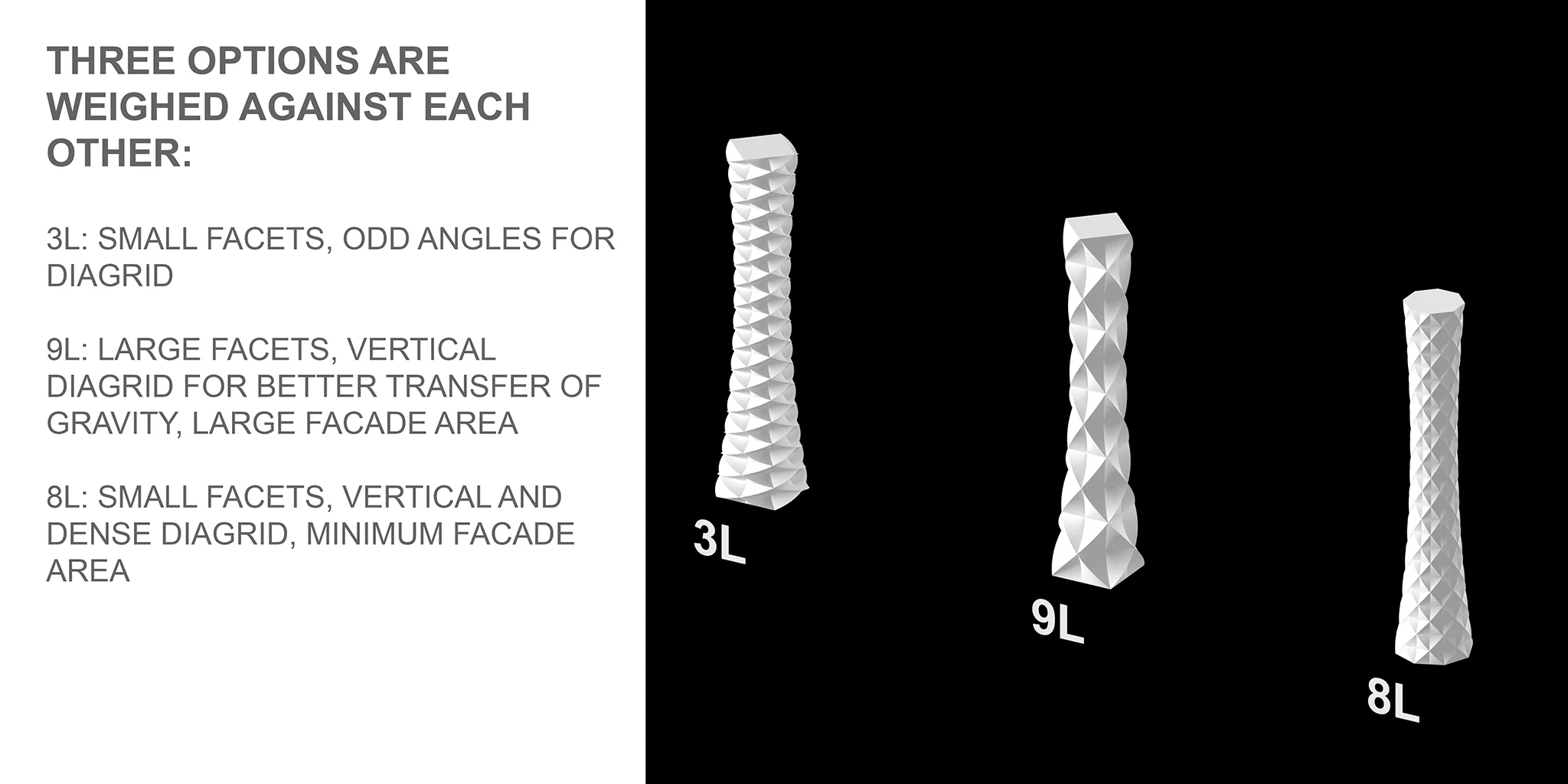

130704_CF Presentation60.jpg
       
     
130704_CF Presentation61.jpg
       
     
130704_CF Presentation62.jpg
       
     
130704_CF Presentation63.jpg
       
     
130704_CF Presentation64.jpg
       
     
130704_CF Presentation65.jpg
       
     
130704_CF Presentation66.jpg
       
     
130704_CF Presentation67.jpg
       
     
130704_CF Presentation68.jpg
       
     
130704_CF Presentation69.jpg
       
     
130704_CF Presentation70.jpg
       
     
130704_CF Presentation71.jpg
       
     
130704_CF Presentation72.jpg
       
     
130704_CF Presentation73.jpg
       
     
130704_CF Presentation74.jpg
       
     

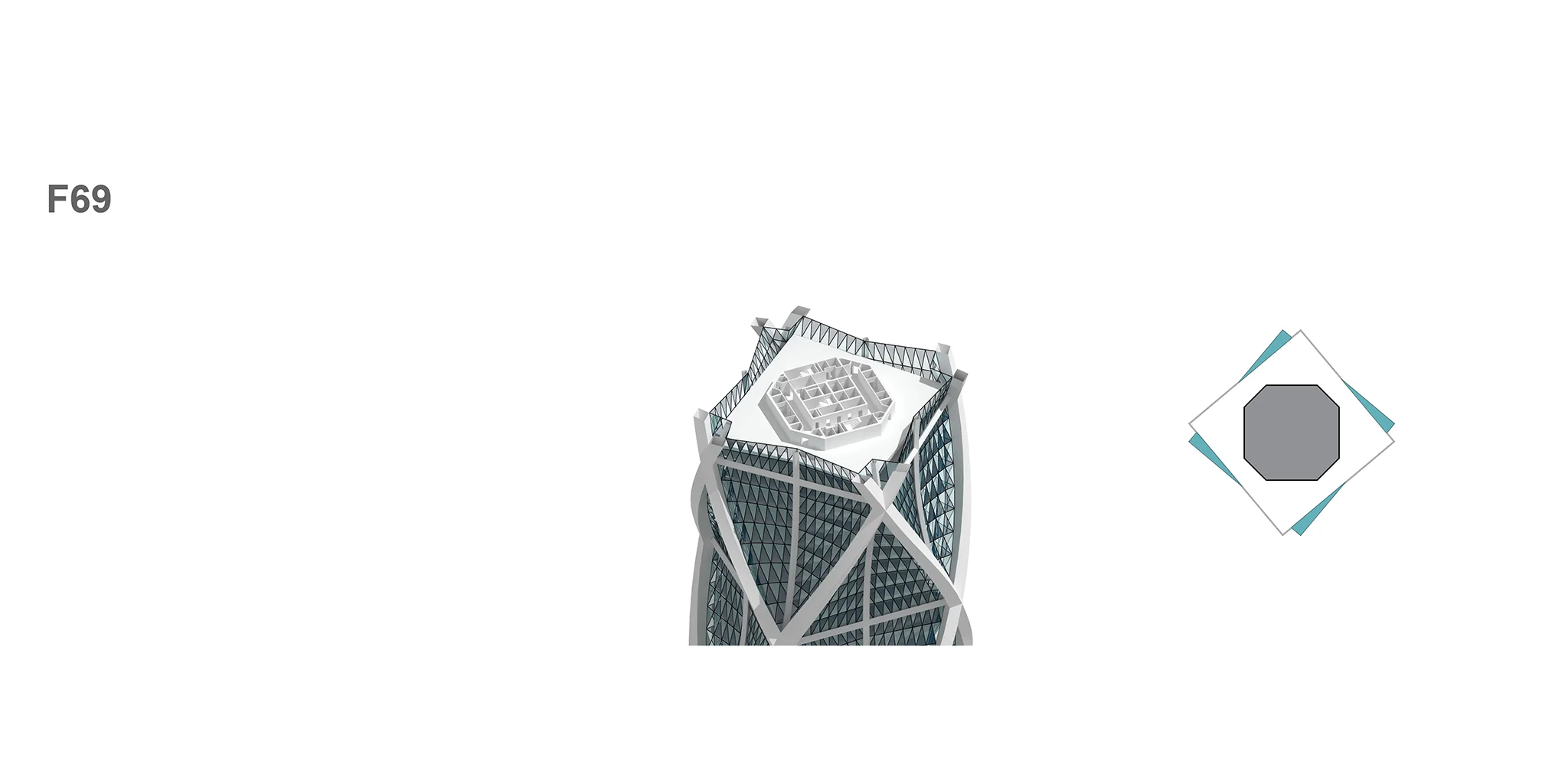

130704_CF Presentation75.jpg
       
     
130704_CF Presentation76.jpg
       
     
130704_CF Presentation77.jpg
       
     
130704_CF Presentation78.jpg
       
     
130704_CF Presentation79.jpg
       
     
130704_CF Presentation80.jpg
       
     
130704_CF Presentation81.jpg
       
     
130704_CF Presentation82.jpg
       
     
130704_CF Presentation83.jpg
       
     
130704_CF Presentation84.jpg
       
     
130704_CF Presentation85.jpg
       
     
130704_CF Presentation86.jpg
       
     
130704_CF Presentation87.jpg
       
     
130704_CF Presentation88.jpg
       
     
130704_CF Presentation89.jpg
       
     

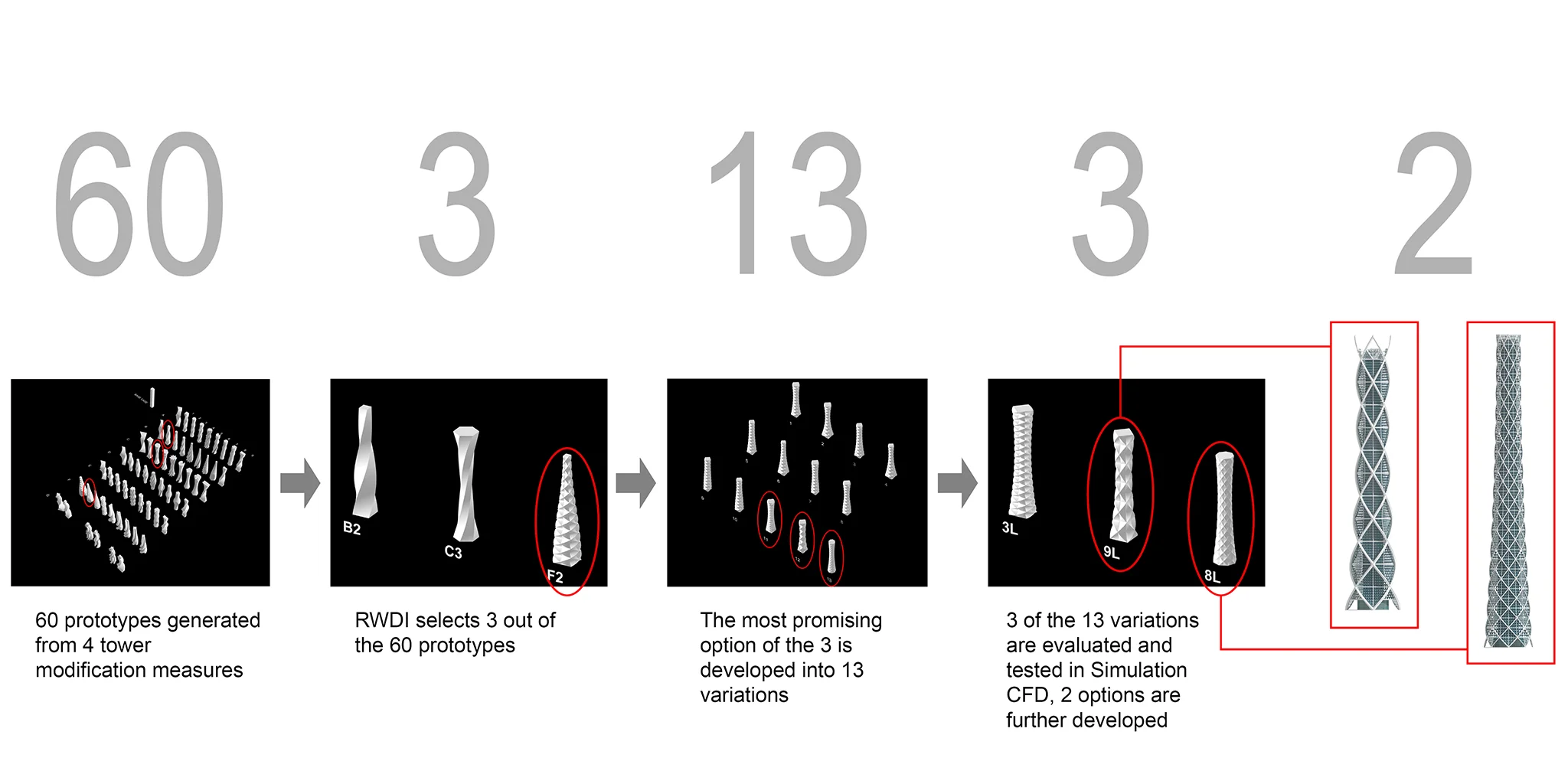

130704_CF Presentation91.jpg
       
     
130704_CF Presentation92.jpg
       
     
130704_CF Presentation93.jpg
       
     
130704_CF Presentation94.jpg
       
     
130704_CF Presentation95.jpg
       
     
130704_CF Presentation96.jpg
       
     
130704_CF Presentation97.jpg
       
     
130704_CF Presentation98.jpg
       
     

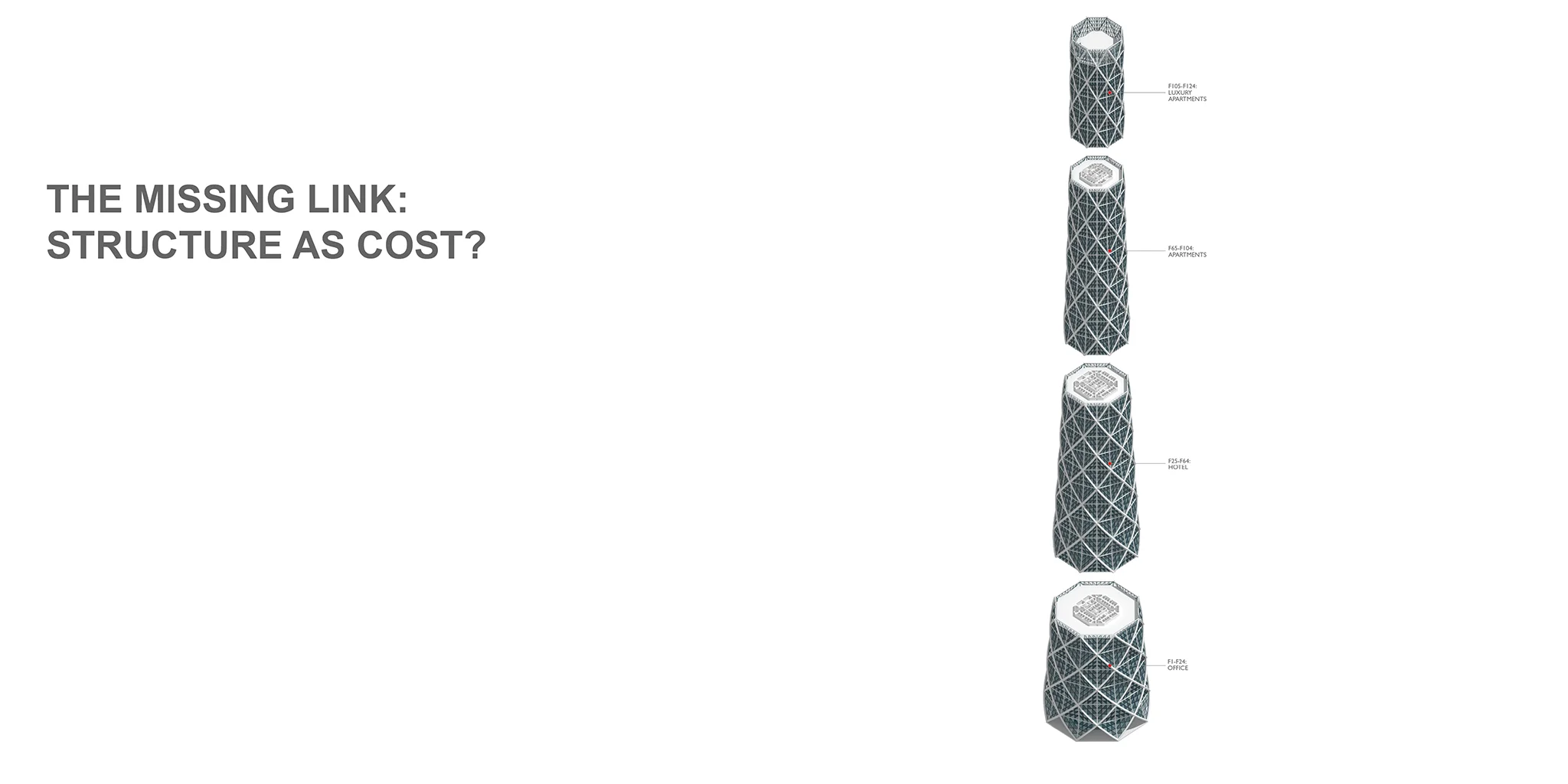

130704_CF Presentation99.jpg
       
     
